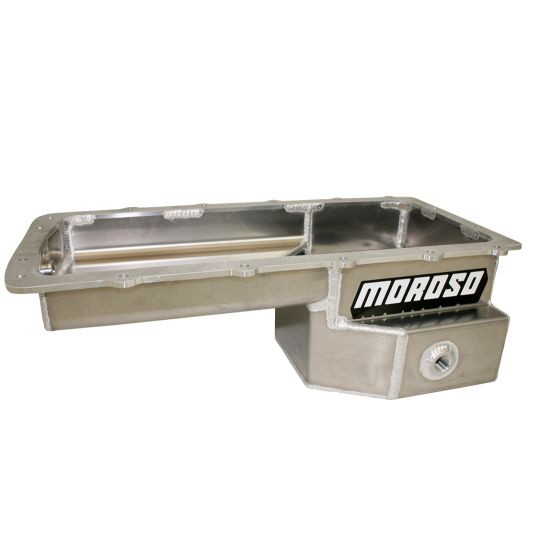

Oil Pan, Ford 5.0 Coyote, Drag Race Baffled, Rear T-Sump

Out of stock
Part #
Fits: Mustang, 2011-Up, Mustang 1994-'10 and other Ford Rear Sump applications with Ford "Coyote" Engines. Oil Pan, Aluminum, Fully Fabricated. Engine Application: Ford 5.0 Modular "Coyote" Engines

Aluminum, Wet Sump, 9 Quart Capacity

Engine Application: Ford 5.0 Modular "Coyote" Engines

Fits: Mustang '1994-Up & other Ford Rear Sump conversions with Ford "Coyote" Engines, check measurements

  • Oil pan has a thick aluminum rail with a fabricated aluminum sump
  • Designed to be used with the 5.0 "Coyote" factory windage tray and dipstick
  • Features a Drag Race proven trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during launches and deceleration
  • 1/2" NPT fitting for supercharger drain back
  • 1/2" NPT fitting for oil temperature sender
  • 20 mm fitting for the factory oil level sensor*

*If the factory low oil warning sensor is not going to be used, Part 22738, 20mm Plug with copper washer is available.

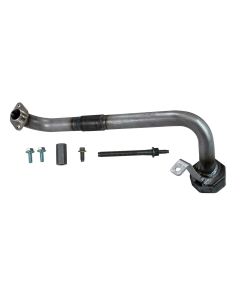

24574 Fits: Factory 5.0 "Coyote" Part No. BR3E-6621-AC Oil Pump, required
