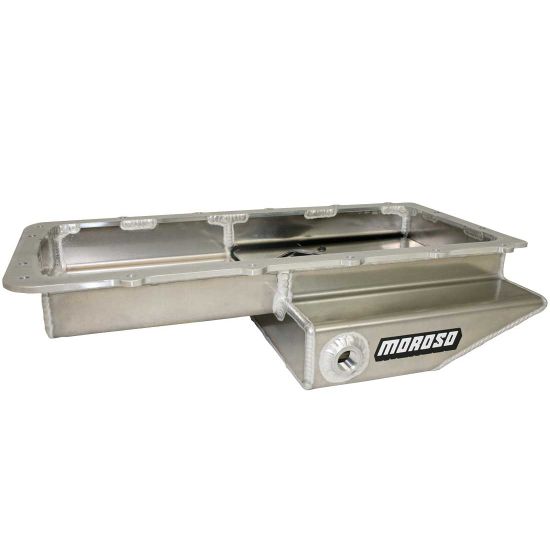

Oil Pan, Ford 5.0 Coyote, Cobra Replica, Road Race Baffled, Rear T-Sump, Alum.

Out of stock
Part #
Fits: Cobra Kit Cars that require a rear sump oil pan. Oil Pan, Aluminum, Race Baffled. Engine Application: Ford 5.0 Modular "Coyote" Engines

Aluminum, Wet Sump, 9-1/2 Quart Capacity, 4-3/8" Deep

Engine Application: 5.0 Modular "Coyote" Engines

• For Ford 5.0 "Coyote" Engine Blocks

• Designed for Cobra Replicas that require a shallow rear sump oil pan

• Oil pan has a thick aluminum rail with a fabricated aluminum sump

• Designed to be used with the 5.0 "Coyote" factory windage tray and dipstick

• Features a race proven four trap door assembly and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing and drag racing

• Extra capacity; holds 1.5 more quarts that the Mustang O.E.M. oil pan

• 1/2" NPT fittings, supercharger drain back & oil temperature sender

• 20 mm fitting for the factory oil level sensor*


24570 Fits: Factory 5.0 "Coyote" Part No. BR3E-6621-AC Oil Pump, required

* If the factory low oil warning sensor is not going to be used, Part # 22738 20 mm Plug with copper washer is available
