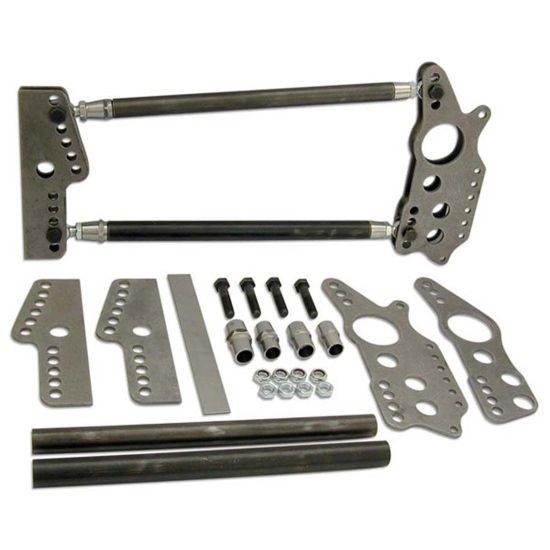

4-LINK KIT, MAGNUM
In stock
Part #
C2028
$698.99
Prop 65 WarningThis product contains a chemical known to the state of California to cause cancer, birth defects, or reproductive harm.
https://www.p65warnings.ca.gov/Magnum Series 4-Link Kit
Description
Designed for ultra-high horsepowered race cars
Includes 1/4" thick housing & frame brackets (most competitors kits have 3/16" brackets) with 5/8" mounting holes on a 21" radius, with mounting holes for Wheel-E-Bars™, sway bar and shock mounting as well as 1-1/4" holes for additional tube gusseting. We use 1-1/4" O.D. x .095" wall top tube and a 1-3/8" O.D. x .095" wall bottom tube to handle the shock loads without flexing.
- All hardware and mounting instructions to ensure an effortless installation
- 1/4" thick Axle Bracket w/ integral shock mounting holes saves fabrication time by eliminating separate shock brackets
- Heavy Duty chrome moly steel link tubes and threaded tube inserts for added strength
- 21" mounting radius
- Computer machined threaded tube ends
- 1-1/4" holes provided in brackets for additional gusseting
- For 3" Axle Tubes
- Includes 4 left & 4 right-hand chrome moly spherical rod ends
- Welding required
- Sold in pairs
