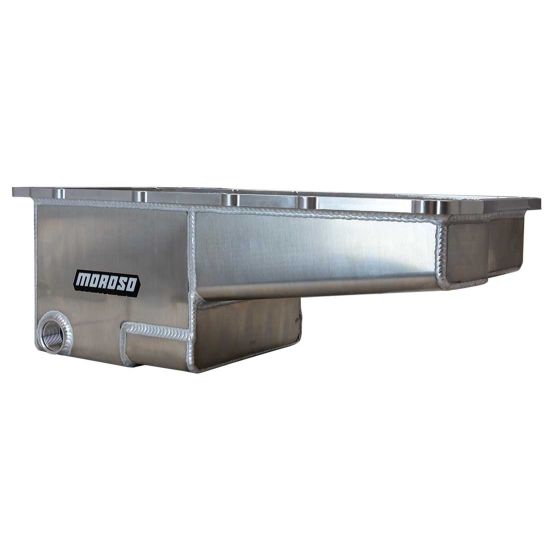

OIL PAN, GM LS, 16-UP, COPO, DRAG RACE, -16AN PICK UP, 7.5 IN. DEEP
$981.99
GM LS DRAG RACE/ COPO CAMARO 16-UP ALUM. OIL PAN, -16AN EXT. P/U
Aluminum, Wet Sump, 7 Quart Capacity, 7-1/2" deep
Engine Application: GM LS Series
Fits: COPO Camaro '16-up and rear sump applications (Check Dimensions)
- Clears 4.25" stroke with most steel rods
- Integrated -16AN pickup for external oil pump
- Trap door, anti-slosh tray and rear anti-climb baffle for improved oil control
- Includes billet aluminum 22mm spin-on filter mount with ¼" N.P.T. sensor port
- Fabricated aluminum
- NHRA legal for stock eliminator & factory showdown
To Purchase any of these products please go to Related Products below.
| PART NO. |
Requires the following GM Parts to complete the installation of Part No. 21157 on engine |
| 12570788 |
Dipstick |
| 12570787 |
Dipstick Tube |
| PART NO. |
AVAILABLE OPTIONS |
| 23962 |
Fitting, -16AN Male to -16AN Male, External Screen |

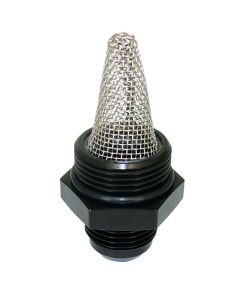

| 23963 |
Fitting, -12AN Male to -16AN Male, External Screen |
| 93152 |
Oil Pan Gasket, One Piece Design, Steel Reinforced, GM LS Series (Except LS7 & LS9) |
| 38306 |
Bolt Kit, Oil Pump, 5 Bolts, GM LS |
| 38541 |
Oil Pan Stud Kit |
| 22463 |
Racing Oil Filter |
| 71162 |
Dust Shield for Moroso & Aftermarket Oil Pans |
| 22941 |
Windage Tray, GM Studs |
| 22943 |
Windage Tray, ARP Studs |
| 23707 |
Spin-on Oil Filter Adapter, 90 Degree Remote |
| 23711 |
Spin-on Oil Filter Adapter, Sideways Mount |
| 23713 |
Spin-on Oil Filter Adapter, External Input Inlet, Outbound Rail |
| 25030 |
GM LS Rear Oil Passage Plug, Billet Aluminum, Two O-rings |
To Purchase any of these products please go to Related Products below.
