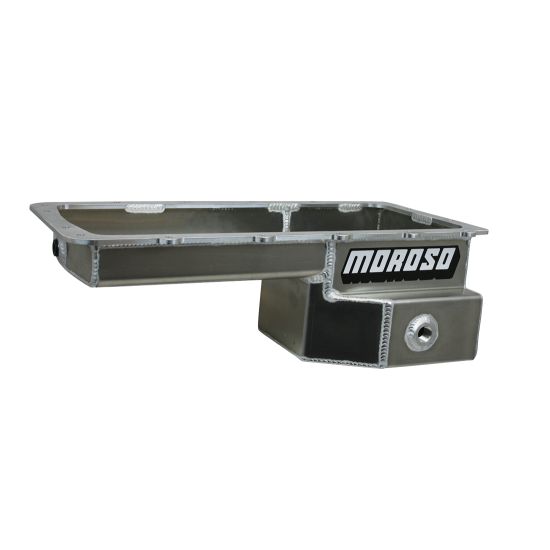

OIL PAN,FORD 5.0 COYOTE, ROAD RACE BAFFLED,REAR T-SUMP, FOX SWAP, ALUMINUM
Fits: Mustang, 1979-'93 and other Ford Rear Sump applications with Ford "Coyote" Engines. Oil Pan, Aluminum, Fully Fabricated. Engine Application: Ford 5.0 Modular
"Coyote" Engines
Aluminum, Wet Sump, 9 quart capacity, 6-5/8" Deep
Engine Application: Ford 5.0 Modular "Coyote" Engines
Fits: Mustang '11-Up & other Ford Rear Sump conversions with Ford "Coyote" or "Voodoo" Engines, (Check Dimensions)
Available in either fully fabricated steel with clear zinc finish or fully fabricated aluminum
Features trap door and removable anti-slosh baffle for improved oil control
Designed to be used factory dipstick
1/2" N.P.T. fitting for supercharger/turbo drain back, and 1/2" N.P.T. fitting for oil temperature sender
20 mm fitting for factory oil level sender*
Gen 1 & 2 Coyote use factory oil pickup, Gen 3 Coyote/Voodoo use Moroso No. 24578 pickup
*If the factory low oil warning sensor is not going to be used, Part 22738, 20mm Plug with copper washer is available.
To Purchase this product please go to Related Products below.
PART NO.
RECOMMENDED PICKUP
24578

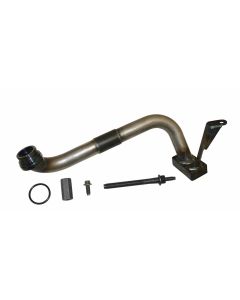

GEN III Oil Pump Pickup-FITS: 5.0 Ford Coyote & 5.2 Voodoo
PART NO.
AVAILABLE OPTION
22738

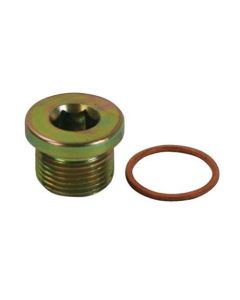

Factory Low Oil Warning Sensor Plug, 20mm
22936
Windage Tray, Oil Pan Gasket
22203
Standard Volume, Oil Pump
38554

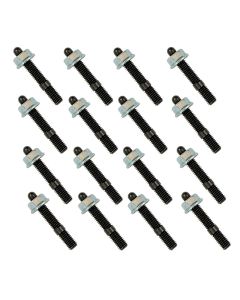

Oil Pan Stud Kit, Coyote 5.0/5.2, Voodoo
