DRY SUMP PUMP, TRI LOBE, RT SIDE, GM LS, 4 STG

In stock

Part #

22384

$2,310.99

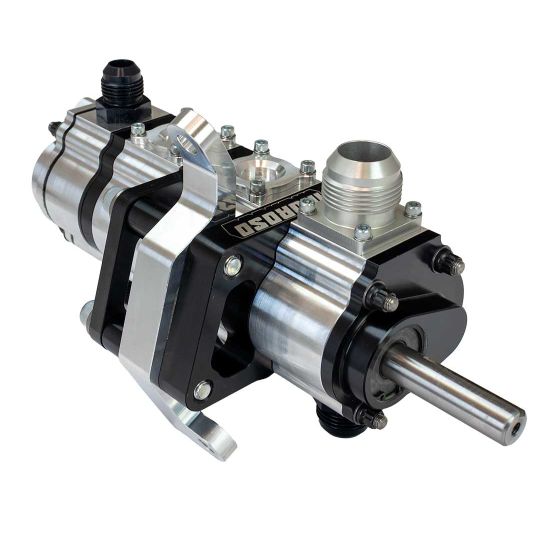

Dry Sump Pump, Tri Lobe, GM LS Mount, 4 Stg., 1.200" Pressure

Description

Tri-lobe aluminum scavenge sections featuring individual timing gears to ensure proper clearance at the highest of RPM's

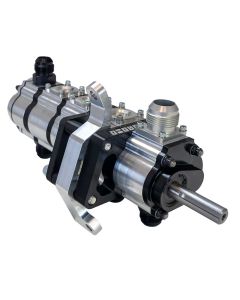

Available in 4 stage (No. 22384) and 5 stage (No. 22385)
1.200 spur gear pressure section based off Moroso's billet wet sump pump designs
Supplied bracket allows pump to mount to the block when combined with Moroso bracket No. 22764
Variable spring rates your oil pressure for smooth, reliable oil pressure readings
Lighter weight than gerotor pumps, require up to 40% less power to drive while still making big crankcase vacuum
Includes replaceable fittings; Pressure section -12AN inlet, -12AN outlet, Scavenge section inlets -12AN, Return -16AN

Videos

Options

To Purchase any of these products please go to Related Products below.

PART NO.	AVAILABLE OPTIONS
22851	Dry Sump/External Oil Pump Drive for a 5/8" Diameter Shaft
97641	Fitting, -12AN to -12AN
22606	Fitting, Dry Sump, -10AN to -12AN
22743	Fitting, Dry Sump, -16AN
23548	40T Dry Sump Pump Pulley
