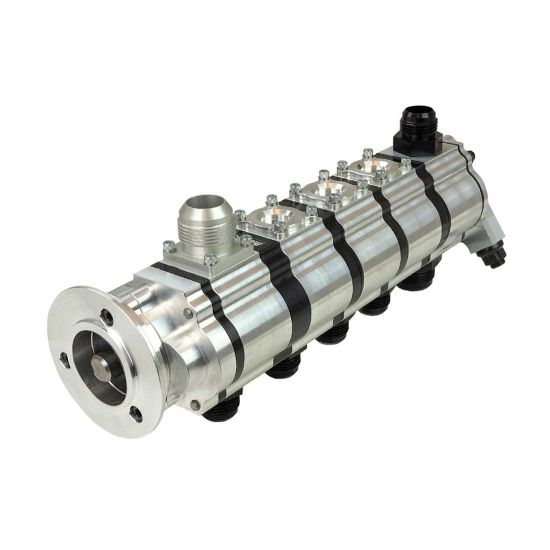

DRY SUMP PUMP, TRI-LOBE, PROCHARGER, V-BAND CLAMP, 5 STAGE ,1.500
Out of stock
Part #
22315
$2,868.99
Prop 65 WarningThis product contains a chemical known to the state of California to cause cancer, birth defects, or reproductive harm.
https://www.p65warnings.ca.gov/Dry Sump Pump, Five Stage, Pro-Charger Front Drive, V-Band Clamp, 1.500 Pressure/1.700 Scavenge.This is a made to order part, please contact our Tech Department at
(203-458-0546) for assistance.
Description
Updated 1.500" Pressure Section for use with V-Band Mount ProCharger And Alston Supercharger Front Drive assemblies optimized output for 50% drive ratio
- Tri-lobe aluminum scavenge sections featuring individual timing gears to ensure proper clearance at high RPM's
- 1.500 Spur gear pressure section based off Moroso's billet wet sump pump design
- V-band mount available for ProCharger or Alston supercharger front drive assemblies
- Includes multiple spring rates and an adjustable external bypass for ease of adjustment
- Available in standard and reverse rotation configurations
- Includes replaceable fittings; Pressure Section -16AN inlet, -12AN outlet, scavenge -12AN inlet, -16AN return
Related Products
-
-
-
-

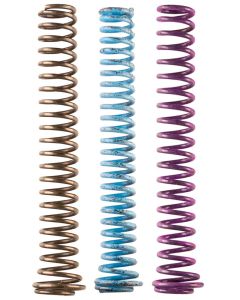

PART #22851OIL PUMP SPRING KIT, 3 PIECE, FOR 22163, 22164 AND ALL T3 DRY SUMP AND EXTERNAL OIL PUMPS$9.99Out of stock
