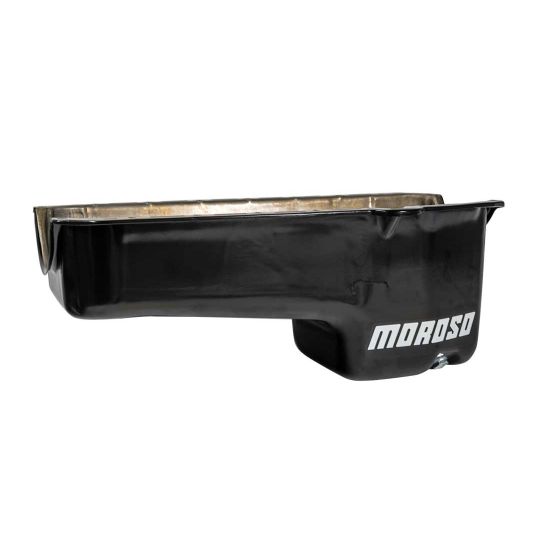

OIL PAN, SBC SBC PRE- 80 DRIVER'S SIDE DIPSTICK, 8.25 IN. DEEP
$283.99
Fits: Most chassis (except 1962-67 Chevy II, V8 Vega and Monza). Oil Pan, Steel, Black Powdercoat, Street Performance,
Deep Sump. Engine Application: Pre-1980 blocks with driver-side
dipstick.
Steel, Wet Sump, 6 Quart Capacity, 8-1/4" deep
Fits: Most chassis (except 1962-67 Chevy II, V8 Vega and Monza)
Clears 4.125" stroke with most steel rods Fits 4 bolt Dart, GM and Merlin main caps Trap door baffle for improved oil control Black powder coat finish by Moroso Powder Coating To Purchase any of these products please go to Related Products below.
PART NO. RECOMMENDED PICKUPS
24170 Fits: Moroso SBC Race Pump Nos. 22099, 22101 or M55 style pump
24181 Fits: SBC 3/4" Inlet, M10552/M10555 Style Pumps
24350 Fits: Moroso SBC HV Race Pump Nos. 22109, 22111 or M55HV style pump
24320 Fits: Moroso BBC Race Pump No. 22150 or M77HV style pump
24360 Fits: M155HV style pump
PART NO. OIL PUMP/PICKUP PACKAGE
22124 Moroso Standard Volume Package
22134 Moroso High Volume Package
22146 Moroso High Volume Package w/ 3 4" dia. inlet
22171 Moroso Billet Aluminum Oil Pump
PART NO. AVAILABLE OPTIONS
23020 Windage Tray
23000 Oil Pan Baffle
25800 Crank Scraper
38551 Oil Pan Flange Head Bolts, SBC
93150 Oil Pan Gasket, Pre-'85 block with a 2 piece rear main seal
To Purchase any of these products please go to Related Products below.
PART NO. RECOMMENDED PICKUPS
24170 Fits: Moroso SBC Race Pump Nos. 22099, 22101 or M55 style pump
24181 Fits: SBC 3/4" Inlet, M10552/M10555 Style Pumps
24350 Fits: Moroso SBC HV Race Pump Nos. 22109, 22111 or M55HV style pump
24320 Fits: Moroso BBC Race Pump No. 22150 or M77HV style pump
24360 Fits: M155HV style pump
PART NO. OIL PUMP/PICKUP PACKAGE
22124 Moroso Standard Volume Package
22134 Moroso High Volume Package
22146 Moroso High Volume Package w/ 3 4" dia. inlet
22171 Moroso Billet Aluminum Oil Pump
PART NO. AVAILABLE OPTIONS
23020 Windage Tray
23000 Oil Pan Baffle
25800 Crank Scraper
38551 Oil Pan Flange Head Bolts, SBC
93150 Oil Pan Gasket, Pre-'85 block with a 2 piece rear main seal
