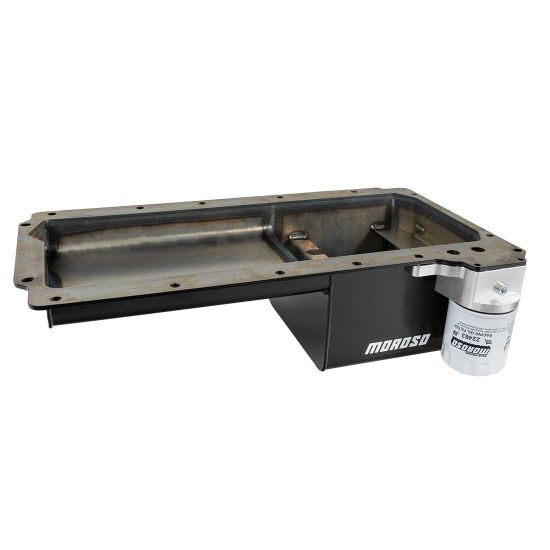

OIL PAN, GM LS, SWAP, REAR SUMP, STRAIGHT SUMP, SPIN-ON OIL FILTER ADAPTER
$457.99
Wet Sump 5 Quart Capacity, 6" Deep, 8.5" Wide, 8.375" Long
Engine Application: GM LS Series
Steel Oil Pan, Black Powdercoat
Fits: LS Engine Conversions that require a Rear Sump (Check Measurements)
Steel, Wet Sump, 5 Quart Capacity, 6" Deep
Engine Application: GM LS Series
Fits: Fits: LS Engine Conversions that require Rear Sump (Check Dimensions)
Clears 4.25" stroke with most steel rods Trap door and rear anti-climb baffle for improved oil control Includes billet aluminum 22 mm spin-on oil filter mount with 1/4" N.P.T. sensor Fabricated steel with black powder coat finish by Moroso Powder Coating Uses LS car application dipsticks To Purchase any of these products please go to Related Products below.
PART NO. RECOMMENDED PICKUPS
24050 Fits: Stock or Moroso GM LS Oil Pump Nos. 22119, 22120, 22121 & 22122
PART NO. AVAILABLE OPTIONS
22119 Oil Pump GM LS, Standard Volume & Pressure
22120 Oil Pump GM LS, Race
22121 Oil Pump GM LS High Volume & Pressure
22122 Oil Pump GM LS Standard Volume/High Pressure
22463 Racing Oil Filter

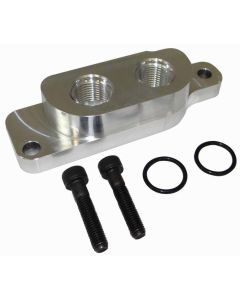

23707 Spin-on Oil Filter Adapter, 90 Degree Remote
23711 Spin-on Oil Filter Adapter, Sideways Mount
23712 Spin-on Oil Filter Adapter
23713 Spin-on Oil Filter Adapter, External Input Inlet, Outbound Rail
24890 GM LS Oil Pump Flange Reinforcement
22941 Windage Tray, GM Studs
22943 Windage Tray, ARP Studs
38306 Bolt Kit, Oil Pump, 5 Bolts, GM LS
38541 Oil Pan Mounting Stud Kit
71162 Dust Shield, GM LS
93152 Oil Pan Gasket, GM LS
97315 O-Ring, GM LS Oil Pump Pick Ups, 2 Pack
25030 GM LS Rear Oil Passage Plug, Billet Aluminum, Two O-rings
To Purchase any of these products please go to Related Products below.
PART NO. RECOMMENDED PICKUPS
24050 Fits: Stock or Moroso GM LS Oil Pump Nos. 22119, 22120, 22121 & 22122
PART NO. AVAILABLE OPTIONS
22119 Oil Pump GM LS, Standard Volume & Pressure
22120 Oil Pump GM LS, Race
22121 Oil Pump GM LS High Volume & Pressure
22122 Oil Pump GM LS Standard Volume/High Pressure
22463 Racing Oil Filter
23707 Spin-on Oil Filter Adapter, 90 Degree Remote
23711 Spin-on Oil Filter Adapter, Sideways Mount
23712 Spin-on Oil Filter Adapter
23713 Spin-on Oil Filter Adapter, External Input Inlet, Outbound Rail
24890 GM LS Oil Pump Flange Reinforcement
22941 Windage Tray, GM Studs
22943 Windage Tray, ARP Studs
38306 Bolt Kit, Oil Pump, 5 Bolts, GM LS
38541 Oil Pan Mounting Stud Kit
71162 Dust Shield, GM LS
93152 Oil Pan Gasket, GM LS
97315 O-Ring, GM LS Oil Pump Pick Ups, 2 Pack
25030 GM LS Rear Oil Passage Plug, Billet Aluminum, Two O-rings
Prop 65 Warning
PART #23713FILTER ADAPTER GM LS SPIN ON, EXTERNAL, DRY SUMP OIL PUMP INPUT INLET, OUTBOUND RAIL$146.99Out of stock
