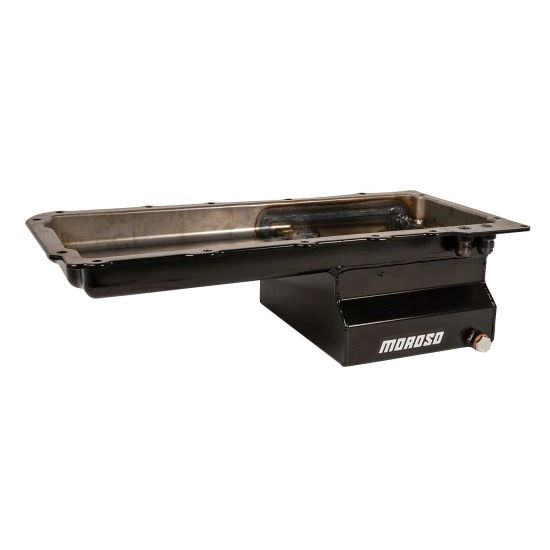

OIL PAN, GM LS, REAR SUMP, EARLY F-BODY, 2 -10 AN REMOTE FILTER
$424.99
Fits: 1968-'72 Nova, 1965-'72 Chevelle, 1967-'69 Camaro,
Can also be used in additional applications
check dimensions
for clearance. Oil Pan, Steel, Black Powdercoat. Engine Application: GM LS Series
Steel, Wet Sump, 7 Quart Capacity, 6" deep, Baffled
Engine Application: GM LS Series
Fits: 1968-'72 Nova, 1965-'72 Chevelle, 1967-'69 Camaro, Can also be used in additional applications; (Check Dimensions)
Clears 4.25" stroke with most steel rods Trap-door and rear anti-climb baffle for improved oil control -10AN fittings for remote filter installation Fabricated steel with black powder coat finish by Moroso Powder Coating Uses LS car application dipsticks To Purchase any of these products please go to Related Products below.
PART NO. RECOMMENDED PICKUPS
24050 Fits: Stock or Moroso GM LS Oil Pump Nos. 22119, 22120, 22121 & 22122
PART NO. AVAILABLE OPTIONS
22119 Oil Pump GM LS, Standard Volume & Pressure
22120 Oil Pump GM LS, Race
22121 Oil Pump GM LS High Volume & Pressure
22122 Oil Pump GM LS Standard Volume/High Pressure
22941 Windage Tray, GM Studs
22943 Windage Tray, ARP Studs
24890 GM LS Oil Pump Flange Reinforcement
38306 Bolt Kit, Oil Pump, 5 Bolts, GM LS
38541 Oil Pan Stud Kit
71162 Dust Shield for Moroso and Aftermarket Oil Pans
93152 Oil Pan Gasket, One Piece Design, Steel Reinforced, GM LS Series (Except LS7 & LS9)
97315 O-Ring, GM LS Oil Pump Pick Ups, 2 Pack
25030 GM LS Rear Oil Passage Plug, Billet Aluminum, Two O-rings
To Purchase any of these products please go to Related Products below.
PART NO. RECOMMENDED PICKUPS
24050 Fits: Stock or Moroso GM LS Oil Pump Nos. 22119, 22120, 22121 & 22122
PART NO. AVAILABLE OPTIONS
22119 Oil Pump GM LS, Standard Volume & Pressure
22120 Oil Pump GM LS, Race
22121 Oil Pump GM LS High Volume & Pressure
22122 Oil Pump GM LS Standard Volume/High Pressure
22941 Windage Tray, GM Studs
22943 Windage Tray, ARP Studs
24890 GM LS Oil Pump Flange Reinforcement
38306 Bolt Kit, Oil Pump, 5 Bolts, GM LS
38541 Oil Pan Stud Kit
71162 Dust Shield for Moroso and Aftermarket Oil Pans
93152 Oil Pan Gasket, One Piece Design, Steel Reinforced, GM LS Series (Except LS7 & LS9)
97315 O-Ring, GM LS Oil Pump Pick Ups, 2 Pack
25030 GM LS Rear Oil Passage Plug, Billet Aluminum, Two O-rings
