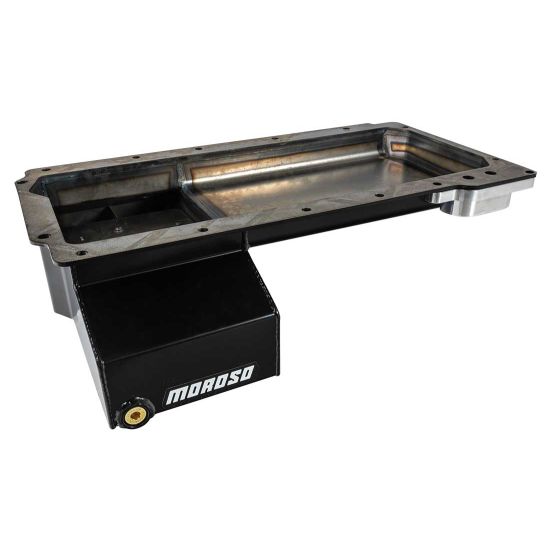

OIL PAN, GM LS, FRONT SUMP, SWAP, ROAD RACE, REMOTE OIL FILTER ADAPTER
$499.99
Chevrolet GM LS Series, Front Sump Swap, Wet Sump, Steel, Black Powdercoat, 6.5 Quart Capacity, 6" Deep, 14" Wide, 6.75" Long, Baffled
Steel, Wet Sump, 6.5 Quart Capacity, 6" Deep, Baffled
Engine Application: GM LS Series
Fits: LS Engine Conversions that require a Front Sump (Check Dimensions)
- Clears 4.25" stroke with most steel rods
- Diamond shaped 4 trap door assembly and anti-slosh tray for improved oil control
- Fabricated steel with black powder coat finish by Moroso Powder Coating
- Includes billet aluminum adapter with -10AN ports for remote filter installation
- Accepts GM part #12558253 windage tray with modification
To Purchase any of these products please go to Related Products below.
| PART NO. |
RECOMMENDED PICKUP |
| 24052 |
Fits: Stock or Moroso GM LS Oil Pump Nos. 22119, 22120, 22121& 22122 |
| PART NO. |
AVAILABLE OPTIONS |
| 22119 |
Oil Pump GM LS, Standard Volume & Pressure |
| 22120 |
Oil Pump GM LS, Race |
| 22121 |
Oil Pump GM LS High Volume & Pressure |
| 22122 |
Oil Pump GM LS Standard Volume/High Pressure |
| 22605 |
-10AN to -10AN Fittings |
| 23707 |
Spin-on Oil Filter Adapter, 90 Degree Remote |
| 23711 |
Spin-on Oil Filter Adapter, Sideways Mount |
| 24890 |
GM LS Oil Pump Flange Reinforcement |
| 25970 |
Universal Dipstick Kit |
| 25971 |
Universal Dipstick Kit, Braided Stainless Flex Tube |
| 25973 |
Universal Dipstick Kit, Twist Lock |
| 38306 |
Bolt Kit, Oil Pump, 5 Bolts, GM LS |
| 38541 |
Oil Pan, Mounting Stud Kit |
| 71162 |
Dust Shield for Moroso and Aftermarket Oil Pans |
| 93152 |
Oil Pan Gasket, GM LS |
| 97315 |
O-Ring, GM LS Oil Pump Pick Ups, 2 Pack |
| 25030 |
GM LS Rear Oil Passage Plug, Billet Aluminum, Two O-rings |
