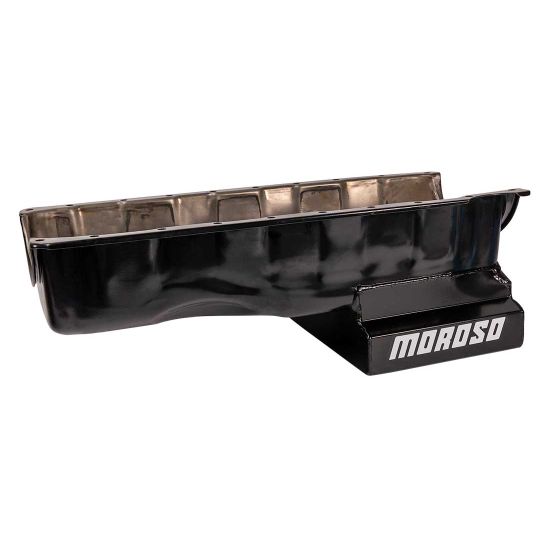

OIL PAN, BBC GEN 5 & 6, 8 IN. DEEP, STROKER T-SUMP
$423.99
Fits: Most GM Chassis, most rear steering
including 1964-'72
Chevelle, Cutlass, Skylark, Tempest/GTO. Oil Pan, Steel, Black Powder Coat, Street Performance, Deep Sump, Core Based.
Engine Application: BBC Gen V/Gen VI
Steel, Wet Sump, 6 Quart Capacity, 8" Deep
Engine Application: Gen V/Gen VI
Fits: Most GM Chassis, most rear steering; including 1964-'72 Chevelle, Cutlass, Skylark, Tempest/GTO
Clears 4.625" with most steel rods, 4.250" with most aluminum rods Anti-slosh baffle for additional oil control Steel with black powder coat finish by Moroso Powder Coating Accommodates stock GM main cap mounted windage tray To Purchase any of these products please go to Related Products below.
PART NO. RECOMMENDED PICKUPS
24440 Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
24441* Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
24445 Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
PART NO. OIL PUMP/PICKUP PACKAGE
22175 Moroso Standard Volume Package
22185 Moroso High Volume Package
22186* Moroso High Volume Package/Front Style Offset Pickup
22163 Moroso Billet Aluminum Oil Pump, BBC, High Volume
22164 Moroso Billet Aluminum Oil Pump, BBC, Standard Volume
*Offset to middle of sump for more consistent oil pressure under braking
PART NO. AVAILABLE OPTIONS

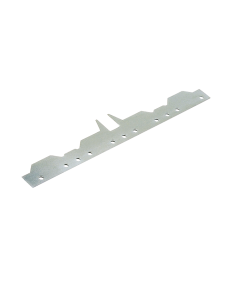

25830 Crank Scraper
25970 Universal Dipstick Kit
25971 Universal Dipstick Kit, Braided Stainless Flex Tube
25973 Universal Dipstick Kit, Twist Lock
38360 Oil Pan Bullet Nose Stud Kit, BBC and Pontiac V8
38560 Self-Locking Oil Pan Bolts, BBC and Pontiac V8
93154 Oil Pan Gasket, One Piece Design, Steel Reinforced, BBC Gen 5 & 6
To Purchase any of these products please go to Related Products below.
PART NO. RECOMMENDED PICKUPS
24440 Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
24441* Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
24445 Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
PART NO. OIL PUMP/PICKUP PACKAGE
22175 Moroso Standard Volume Package
22185 Moroso High Volume Package
22186* Moroso High Volume Package/Front Style Offset Pickup
22163 Moroso Billet Aluminum Oil Pump, BBC, High Volume
22164 Moroso Billet Aluminum Oil Pump, BBC, Standard Volume
*Offset to middle of sump for more consistent oil pressure under braking
PART NO. AVAILABLE OPTIONS
25830 Crank Scraper
25970 Universal Dipstick Kit
25971 Universal Dipstick Kit, Braided Stainless Flex Tube
25973 Universal Dipstick Kit, Twist Lock
38360 Oil Pan Bullet Nose Stud Kit, BBC and Pontiac V8
38560 Self-Locking Oil Pan Bolts, BBC and Pontiac V8
93154 Oil Pan Gasket, One Piece Design, Steel Reinforced, BBC Gen 5 & 6
