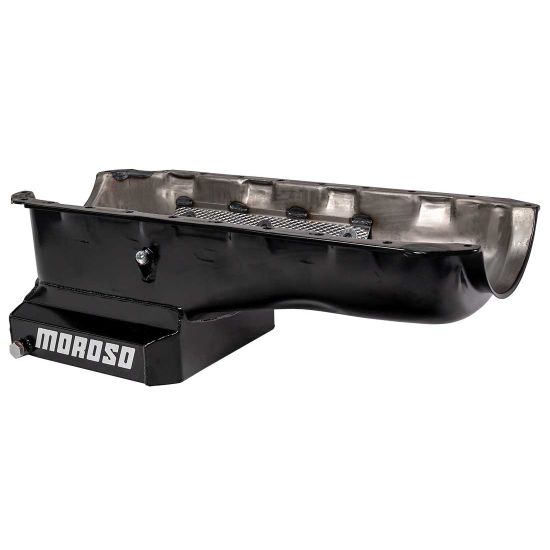

OIL PAN, BBC MARK IV, 8 IN. DEEP, T-SUMP, WINDAGE TRAY
$492.99
Fits: Most chassis except 1962-'67 Chevy II, V8 Vega/Monza
and 1955-'57 Chevy. Oil Pan, Steel, Black Powder Coat, Street Performance, Deep Sump. Engine Application: Mark IV style
(except Gen V and Gen VI)
Steel, Wet Sump, 7 Quart Capacity, 8" Deep
Engine Application: Mark IV style (except Gen V and Gen VI)
Fits: Most chassis except 1962-'67 Chevy II, V8 Vega/Monza and 1955-'57 Chevy
Clears 4.25" stroke with most steel rods and 4.090" stroke with most aluminum rods Integrated trap door, crank scraper and windage screen for improved oil control Black powder coat finish by Moroso Powder Coating
To Purchase any of these products please go to Related Products below.
PART NO. RECOMMENDED PICKUPS
24440 Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
24441* Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
24445 Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
PART NO. OIL PUMP/PICKUP PACKAGE
22175 Fits: Moroso Standard Volume Package
22185 Fits: Moroso High Volume Package
22186* Fits: Moroso High Volume Package with Front Style Offset Pickup
22163 Moroso Billet Pump, High Volume
22164 Moroso Billet Pump, Standard Volume
*Offset to middle of sump for more consistent oil pressure under braking
PART NO. AVAILABLE OPTIONS
23010 Oil Pan Baffle
25970 Universal Dipstick Kit
25971 Universal Dipstick Kit, Braided Stainless Flex Tube
25973 Universal Dipstick Kit, Twist Lock
38360 Oil Pan Bullet Nose Stud Kit, BBC and Pontiac V8
38560 Self-Locking Oil Pan Bolts, BBC and Pontiac V8
93153 Oil Pan Gasket, One Piece Design, Steel Reinforced, BBC Mark 4, notched for stroker cranks
To Purchase any of these products please go to Related Products below.
PART NO. RECOMMENDED PICKUPS
24440 Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
24441* Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
24445 Fits: Moroso BBC Race Pump Nos. 22149, 22150, 22159, 22160, 22162 or M77/M77HV style pump
PART NO. OIL PUMP/PICKUP PACKAGE
22175 Fits: Moroso Standard Volume Package
22185 Fits: Moroso High Volume Package
22186* Fits: Moroso High Volume Package with Front Style Offset Pickup
22163 Moroso Billet Pump, High Volume
22164 Moroso Billet Pump, Standard Volume
*Offset to middle of sump for more consistent oil pressure under braking
PART NO. AVAILABLE OPTIONS
23010 Oil Pan Baffle
25970 Universal Dipstick Kit
25971 Universal Dipstick Kit, Braided Stainless Flex Tube
25973 Universal Dipstick Kit, Twist Lock
38360 Oil Pan Bullet Nose Stud Kit, BBC and Pontiac V8
38560 Self-Locking Oil Pan Bolts, BBC and Pontiac V8
93153 Oil Pan Gasket, One Piece Design, Steel Reinforced, BBC Mark 4, notched for stroker cranks
